Advanced Server Room Temperature Monitoring
A complete 4G/5G server room monitoring kit with wired temperature probes, wireless sensing, data logging and smart SMS, call and email alerts.
Data logging and smart alerts for critical temperature monitoring
Standard temperature monitoring usually gives you one high alarm and one low alarm. That is useful, but server rooms often need more detail. A small rise in temperature may only need checking, while a higher temperature could mean urgent action is required to protect servers, network equipment or other critical electronics.
Our temperature monitoring apps for the ZR5 Internet of Anything system give customers better visibility, clearer alert messages and more flexible alarm handling.
Temperature data is logged for 6 months and can be downloaded in CSV format, making it easy to review temperature history and investigate overheating events.
Need something a little out of the ordinary? Speak to us. The ZR5 includes a customisable app section, and we can create bespoke monitoring logic from as little as £40 + VAT.
Key features
Designed for server rooms, comms rooms, IT cabinets and equipment rooms where reliable out-of-hours alerts are essential.
SMS, call and email alerts
Receive alerts when temperatures move outside the safe limits you choose.
6 months data logging
Temperature data is stored for 6 months and can be downloaded in CSV format.
Wired temperature probes
Use multiple 1-Wire temperature probes to monitor different areas of the room.
Water leak detection included
Includes a water leak detector to alert you to leaks from air conditioning units, pipework or nearby water sources.
Multi-level alarms
Create warning, high, serious and critical alert levels with different messages.
Average temperature app
Combine several sensors into one average temperature reading for a balanced room view.
Battery-backed power
Supplied with a mains power supply and backup battery for short power interruptions.
Custom monitoring apps
Bespoke monitoring logic can be created for unusual or site-specific requirements.
Average Temperature Monitoring App
This app combines multiple temperature sensors into one calculated average temperature reading.
It is useful where a server room has several sensors in different positions, such as near the air conditioning unit, near the server rack, by the door, or in a warmer corner of the room.
Instead of relying on one sensor, the system calculates an average temperature and generates alerts from that combined reading.
Customer benefits
- Monitors the overall server room temperature using several sensors.
- Reduces false alarms caused by one local hot or cold spot.
- Provides a single average temperature alarm point.
- Useful for general server room overheating protection.
- Sends alerts by SMS, call or email when the average temperature goes above or below the chosen limits.
Multi-Level Temperature Alarm App
This app allows each server room temperature sensor to have several alarm levels instead of just one high and one low limit.
For example, a customer can set a warning level, a serious alarm level and a critical alarm level. Each level can have its own message, so the alert tells the customer how serious the situation is.
This is ideal for server rooms because it allows early warning before the temperature becomes critical.
Customer benefits
- Up to four alarm levels per temperature sensor.
- Different alert messages for different severity levels.
- Allows early warning before the room becomes critically hot.
- Helps customers prioritise urgent faults.
- Suitable for server rooms, comms rooms, IT cabinets and plant rooms.
- Alerts can escalate from warning to critical as the temperature rises.
Example server room setup
A customer has several 1-Wire temperature sensors installed around a server room. One sensor is near the air conditioning outlet, one is near the main server rack, and another is near the door.
The average monitoring app gives a balanced overall room temperature, while the multi-level alarm app provides staged alerts as the temperature rises.
| Temperature | Alert level | Example message |
|---|---|---|
| 24°C | Early warning | Server room warmer than normal. |
| 26°C | High temperature | Check air conditioning. |
| 28°C | Serious alarm | Urgent attention required. |
| 30°C | Critical alarm | Risk to server equipment. |
What’s included in the kit?

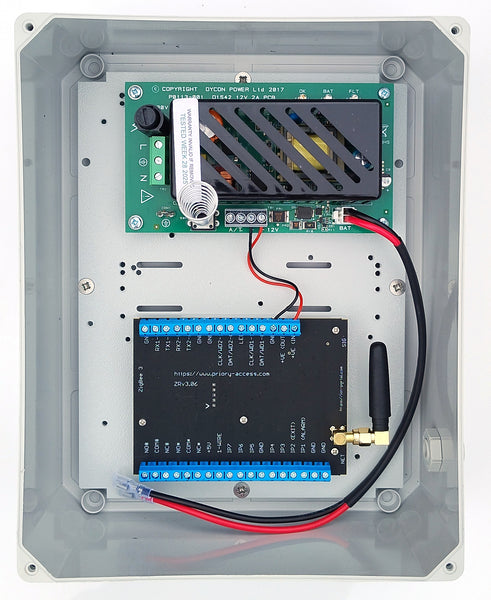

The standard Server Room Temperature Monitoring Kit includes the controller, wired temperature probes, a wireless temperature and humidity sensor, mains power supply and backup battery. It is designed to give reliable alerts even if the server room is unattended or the site loses power.
4 x Wired Temperature Probes
Includes four 5m long 1-Wire temperature probes for monitoring different areas of the server room, such as racks, doorways, air conditioning outlets and warmer corners.
Supports up to 8 wired temperature probes per system.
Wireless Temperature & Humidity Sensor
Includes one Sonoff wireless temperature and humidity sensor with up to 5 year battery life, ideal for monitoring room conditions without extra cabling.
Supports up to 48 compatible wireless sensors per system.
Water Leak Detector
Includes a water leak detector for detecting leaks from air conditioning units, pipework, tanks or other water sources near server room equipment.
Ideal for server rooms, comms rooms and plant rooms where water damage could cause serious disruption.
Mains Power Supply with Battery Backup
Supplied with an IP65 Dycon D-1542-W mains power supply and backup battery, helping the system continue operating during short power interruptions.
Includes 1.2Ah 12V SLA backup battery.
ZR5 Internet of Anything Controller
The ZR5 controller provides cellular connectivity, cloud monitoring, alerts, data logging and support for customisable monitoring apps.
Sends SMS, call and email alerts when configured limits are exceeded.
Optional extras and upgrades
The standard kit can be expanded with additional sensors and custom monitoring options. This makes it suitable for larger server rooms, equipment rooms, plant rooms and sites that need more than basic temperature alerts.
Extra wired temperature probes
Add more 1-Wire probes to monitor extra racks, hot spots, air conditioning outlets or room zones.
Extra wireless sensors
Add wireless temperature and humidity sensors where running cables is inconvenient.
Water leak sensors
Detect leaks from air conditioning units, pipework, tanks or water sources near equipment.
Door contact sensor
Alert if a server room, comms cupboard or equipment cabinet door is left open.
Wireless sockets and relays
Control external equipment, warning beacons, fans, heaters or other devices when an alarm occurs.
Custom monitoring logic
Need something specific? We can create bespoke logic for unusual alarm rules, escalation or site requirements.
Installation requirements
- Mains power required for the supplied power supply.
- Wired temperature probes are supplied with 5m leads.
- Cellular signal required at the installation site.
- Additional wired or wireless sensors can be added if required.
Connectivity and alerts
- Cloud portal access for configuration and monitoring.
- SMS, call and email alerts available.
- Temperature data logged for 6 months.
- CSV download for reviewing logged temperature history.
UK support and customisation
We can help configure your server room monitoring system and advise on sensor placement, alert settings and optional extras.
The ZR5 platform can also be customised for more unusual monitoring requirements, including special alarm logic, additional inputs, outputs, wireless relays and site-specific monitoring apps.
Simple ongoing pricing
The system uses built-in cellular connectivity, so there is no need for Wi-Fi or a customer-supplied SIM card.
£50 every 5 years
Cellular connectivity is renewed every 5 years for a simple fixed fee.
£0.10 per SMS or call
SMS and voice call alerts are charged at a flat rate of £0.10 each, worldwide.
Email alerts and portal access can also be used for monitoring and notification.
Protect your server room with smarter temperature alerts
Order a complete server room monitoring kit, or contact us if you need extra sensors or custom alert logic.
