4G 5G Industrial IoT (IIoT) Control & Monitoring System DIN Rail NB-IoT ZigBee LTE-M

Regular price £189.00

Tax included. Shipping calculated at checkout.

IIoT Monitoring and Control System

  • 4G, 5G IoT & 2G (GSM) networks
  • Vodafone, 3, EE & O2 Included (UK)
  • Comes with SIM card
  • SMS, Emails and Text-to-Speech Calls
  • ZigBee Coordinator Built-in (ZRx model)
  • Wired and Wireless Sensors Available
  • Unlimited emails

The TR5/ZR5 control and monitoring system gives you access to your industrial equipment from anywhere in the world through the secure IoT Portal website and app.

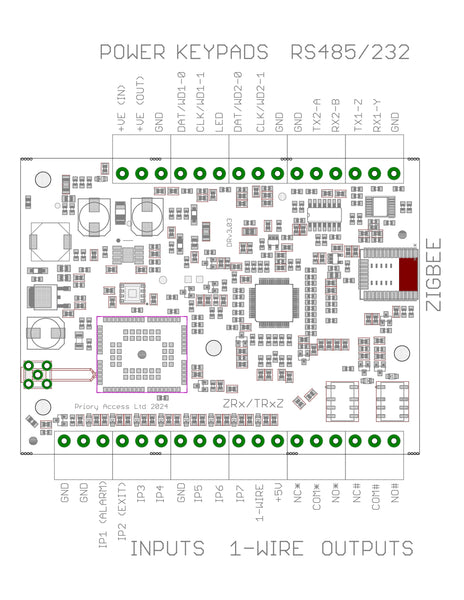

The 8 analogue/digital inputs can monitor be used to measure DC voltages or switch states and display them remotely over the internet. This can also be used to trigger SMS message sending or to trigger Text-To-Speech calls.

The onboard ZigBee coordinator allows wireless expansion (ZR5 model only) allows wireless expansion for additional sensors and output devices including temperature and humidity measurement, on/off mains power switching, lighting etc... For compatible devices see our ZigBee device page here.

All models feature a 1-wire input for multiple temperature probe measurements using the DS18B20 sensor.



Low Operating Costs

Annual - £30/year, 20 SMS and 20 Call Monthly Allowance

They have access to the latest NB-IoT and LTE-M networks provided by EE, Vodafone and O2 giving connection deep into buildings and underground long into the future (UK rollout over 99% complete). As a fall back they can also use 2G on any network.

Compared to traditional mobile phone SIM card diallers or Wi-Fi diallers, iot-portal diallers are extremely good value.



Advanced Features

  • Text-to-Speech calls
  • DTMF tones can be played in call
  • Conference calls
  • Bell silencing during call
  • Voice Recognition
  • Sequential or Simultaneous Calling
  • Sends SMS to all numbers at once
  • PC, Phone or App Setup
  • QR codes for initial access

Click for a guide to using the app

Monitored by the Portal

All iot-portal diallers are monitored by the cloud. Every 4 minutes the portal contacts the dialler to confirm it's working. If the dialler doesn't hear from the portal it automatically reboots itself. If the dialler goes missing for over an hour, an email and optional SMS message is sent to the Admin and Full Access phones and email addresses.

Firmware updates are applied automatically by the portal when required. You can rest assured, if you keep it powered up, we'll keep it running!




Out of allowance PAYG charges (credit never expires)

Calls: £0.10 per call

SMS: £0.10 per SMS

Email: Free £0.00



Comes with £5 starter credit and 20 SMS/Calls for testing (in addition to the 20/20 SMS and Calls with the Annual and 5-year 20/20 tariff).

Price includes first tariff period (i.e. 5 years on 5-Year tariff, 1 year on annual tariff).



Quick Start Guide



Application Notes Below

Call/message until cancelled: AP0106 - Repeating Calls and Messages

Allowing users to view the inputs: AP0107 - View Screen Access

Delaying sending immediately: AP0103 - Input Event Hold

Temporarily Switching off the Dialler: AP0102 - Message and Play Pausing

Build a Monitored Remote Control System: AP0101 - Monitored Remote Control



**Renewal fee subject to RPI at 4.9% per annum
